The inflatable 407NG dock shelter, European designed, and engineering quality. Attractive aesthetic finish, energy efficient due to the adjustable blower. Robust cushions are made of durable and high-quality materials with a quality finish. Ideally suited for conditioned environments, with folded cushions stowed away behind protective curtain strips.
The inflatable dock shelter 407NG is the most efficient and durable seal for the loading dock.
Advantages
Advantages of the Dock Seal 407NG
Application
The inflatable dock shelter 407NG is the most efficient and durable seal for the loading dock. Due to the accordion design of the cushion, an optimal seal is created across a wide range of varying temperatures & vehicle dimensions.
Operation

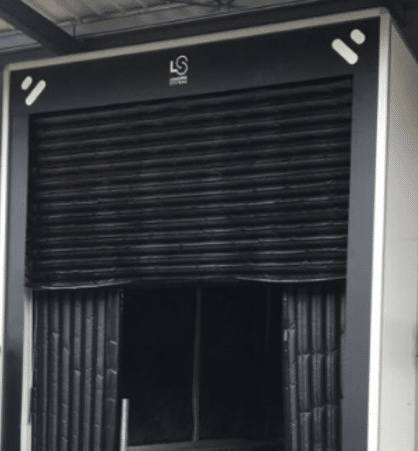

A single 240 VAC blower inflates the seal to form a complete seal around the perimeter of the vehicle. As a contactless system upon the vehicle arriving and departing from the loading dock, an inflatable dock solution can give the longest life span of any dock seal.

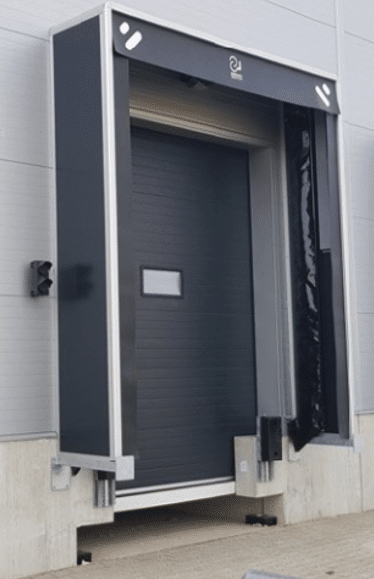

With the curtain deflated, the cushions tuck in behind the protective curtains maintaining the aesthetic aspects of the building and furthermore the driver always has a clear view of the loading dock when docking, guide indicators on the protective curtains also help with guidance.
Technical Specifications
| Standards | CE Certified |
| Width x Height | 3500 x 3750 mm |
| Front opening w x h (Inflated) | 2300 x 2650 mm |
| Front opening w x h (Retracted) | 2950 x 3280 mm |
| Projection | 0 – 800 mm |
| Projection Strips | Width sides 225 mm |
| Height top 420 mm | |
| Side cushions width (Inflated) | 600 mm |
| Height cushion height (Inflated) | 1100 mm |
| Cushion material | 600/900 gr/m2 |
| Inflation time | Approx. 20 seconds |
| Deflation time | Approx. 25 seconds |
| Grey white RAL 9002 panels |
| Protection class control box | IP 65 |
| Protection class blower motor | IP 65 |
| Insulation value panels R | 0,59 m2K/W |
| Power supply | 1NE / 200-240 VAC / 50/60 Hertz |
| Power consumption | 170W |
| Control voltage | 24 VDC |
| Operating temperature | -25 & +50 C. |
| Idle state temperature | -30 & +80 C. |
| Colours | Black protection strips and cushions |
| Aluminium profiles |
